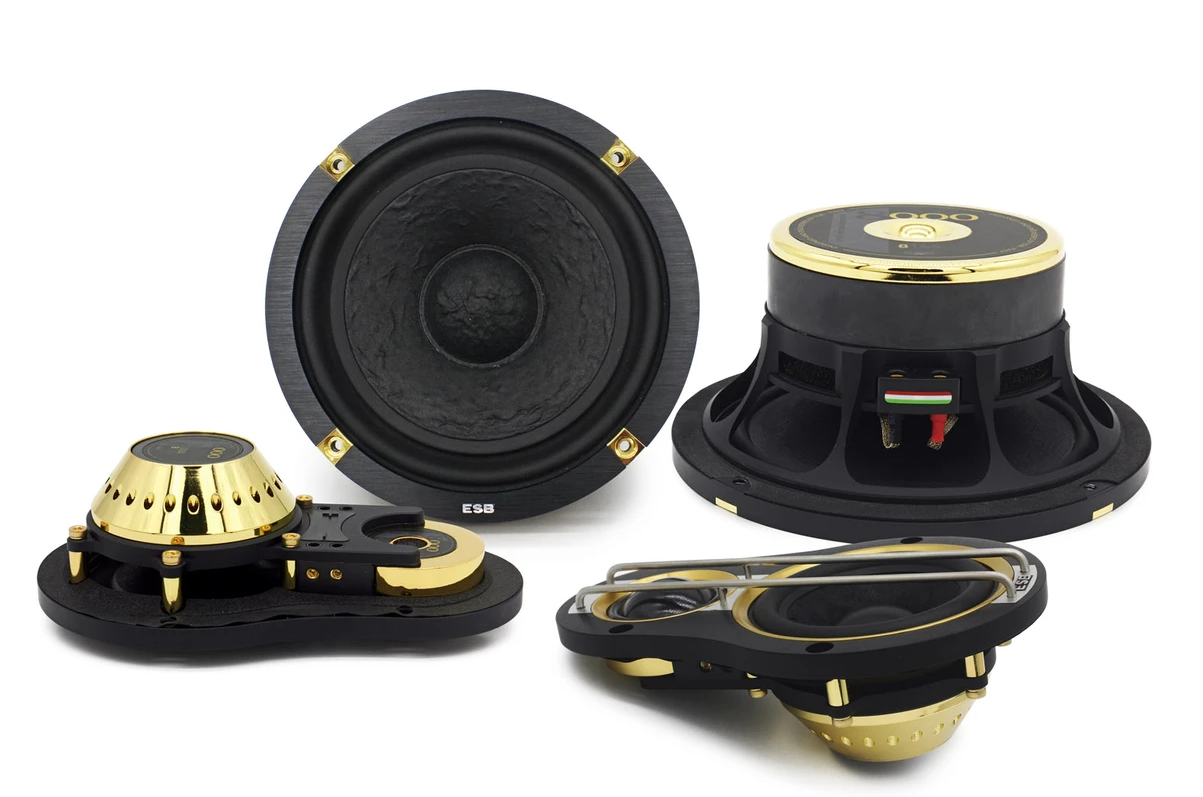

• 8000 series 1" and 3" UMA panel and 6.5" Midbass
  • 8.003UMA

    2-Way Mid-High Unit

    28 mm aluminum VC (tweeter)

    Torcon® soft dome (tweeter)

    High-grade neodymium magnet

    Ferrofluid cooling and damping

    NPPV exponential cone (mid)

    Conex progressive spider (mid)

    Motor metal parts CNC machined

    Under-dome dB Cloth® damping material

    -

    Nominal Impedance: 4 Ohm

    Nominal Power Handling: 120 Watt

    Transient Power: 240 Watt

    Freq. Response: 95 Hz ~ 25 KHz

    Sensitivity: 91 dB 1W/1m

  • 8.165

    6.5"/165 mm Mid-Woofer

    Non-pressed paper cone

    32.4 mm voice coil diameter

    Large Y35 ferrite magnet

    NPPV exponential cone

    VC aluminum support

    TWS Rubber surround

    Conex® progressive spider

    Motor metal part CNC machined

    Computer optimized design

    -

    Nominal Impedance: 4 Ohm

    Nominal Power: 160 Watt

    Transient Power: 320 Watt

    Freq. Response: 45 Hz ~ 4 KHz

    Sensitivity: 89 dB 1W/1m

  • 8.6K3CX (optional)

    3-Way Passive Crossover

    Multi-amp or single amp connect.

    Gold plated spacers and screws

    99.9% pure copper coils

    Anti-inductive resistors

    Very high quality bi-metallized caps

    -

    4 tweeter attenuation levels:

    0; -2; -4; -6 dB

    4 midrange attenuation levels:

    0; -3; -6; -9 dB

    3 midrange high pass frequencies

    2 different cutting slopes for the tweeter and midrange

    4 levels of adjustment for the woofer / midrange transition zone

SKU ESB8.6K3U
Brand ESB AUDIO
Shipping Weight 4.2000kg
Shipping Width 50cm
Shipping Height 12cm
Shipping Length 52cm
